PRODUCTS
American standard flange gate valve
A brief introduction to API600 standard flanged gate valves
Us standard gate valves can only be fully open and fully closed, not for adjustment and throttling.
API600 standard flange gate valve details
Valve name: American standard gate valve
Valve type: z41w-150lb z41w-300lb z41w-600lb
For material: stainless steel, austenitic stainless steel, 304 stainless steel, 316 stainless steel, 304 l stainless steel, 316 l stainless steel, 321 stainless steel, CF8, CF8M, CF3, CF3M stainless steel stainless steel stainless steel stainless steel, cast steel, carbon steel, WCB steel, LCB low temperature carbon steel, alloy steel, WC6, WC9, alloy steel, C5, C12, alloy steel, monel
Related products: API American standard gate valve manual American standard gate valve flange American standard gate valve
Optional actuator: manual, bevel gear, worm wheel, pneumatic, electric and hydraulic
Implementation standards: JIS daily standard, JPI daily standard, JB of the mechanical department, HG, GB national standard, JB national standard, API standard, ANSI standard, German standard, DIN standard, corrosion protection standard EACE
Product pressure: pn-16p 25P 40P 64P 10P
CL - 150 lb, 300 lb, 600 lb, 900 lb
K -5K 10K 20K 30K
Operating brand: zhejiang oudian valve
Connection: flange, welding, thread
Valve size: DN:15mm~600mm ANSI:1/2 "~ 24"
Valve appearance: heavy duty medium
Valve applicable media: water, steam, oil, nitric acid, acetic acid, strong oxidation media and urea
Related products: API American standard gate valve manual American standard gate valve flange American standard gate valve
The valve applicable temperature: - 196 ℃ ~ 680 ℃
Scope of application: tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electric power, ship, metallurgy, energy system and other pipelines
Company address: wenzhou longwan standard factory base (lantian industrial zone) [zhejiang oudian valve]
Stainless steel American standard gate valve product introduction:
I. product description:
Us standard gate valve features:
The products are designed and manufactured in accordance with U.S. national standard ANSIB16.34, American petroleum institute standard AP16D and API600 requirements.
Scarlet is compact in structure, small in volume, good in rigidity and safe and reliable in sealing.
Torque shutoff parts (gate plates) are flexible and can automatically compensate for valve body deformation due to abnormal load or temperature at work. Therefore, the seal is reliable and does not produce wedge columns.
Manual valves with nominal through-diameter greater than or equal to NPS1011, pressure level 400 LBS and nominal through-diameter greater than or equal to NPSS611 and pressure level 600-2500 LBS are equipped with rolling bearings for easy opening and closing.
The materials of main materials, interior parts, fillers, gaskets and fasteners can be reasonably combined according to user requirements or actual working conditions.
The bottom valve seat can be a more hatchback seat, which can be combined with the closing sealing cover material to meet the operating conditions and extend the service life.
Standards:

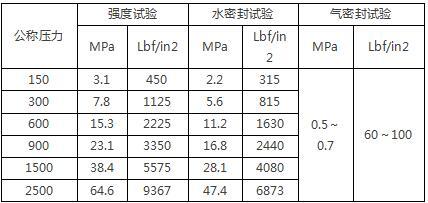

Pressure test: stainless steel standard gate valve

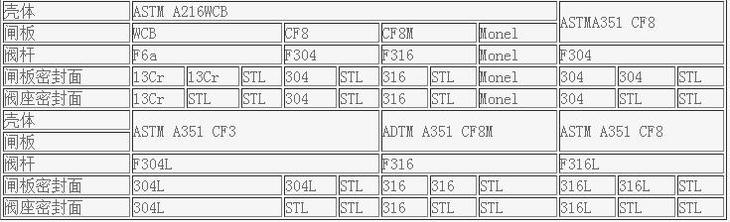

Material and performance of main parts: stainless steel American standard gate valve

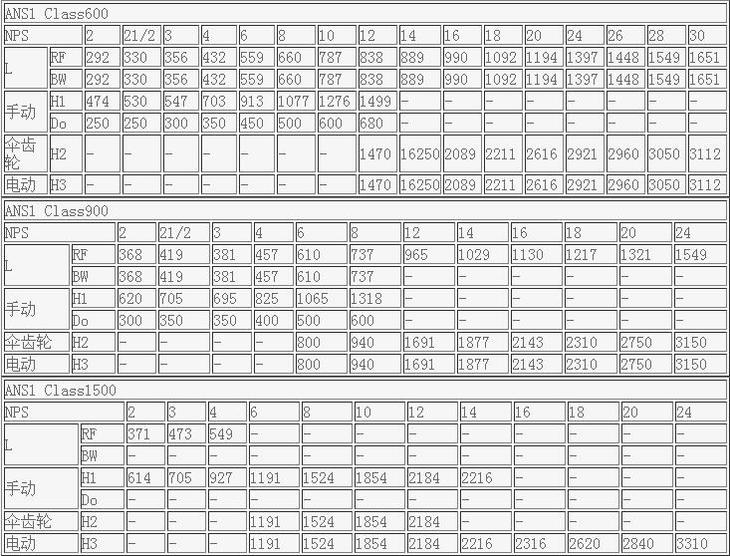

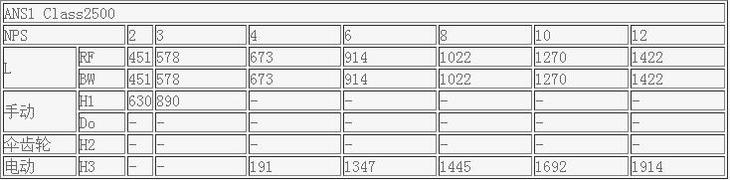

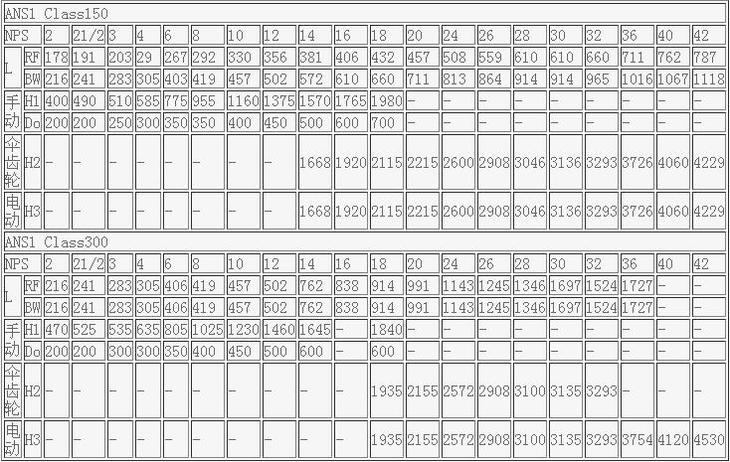

main dimensions of U.S. standard gate valves:
Main dimensions of American standard gate valve: stainless steel standard gate valve
